The reader or controller must match the selected sensor matrix, required scan rate, communication method and operating workflow.
A pressure mapping reader converts signals from a compatible sensor matrix into data the analysis software can use. Reader selection depends on the matrix load, required scan rate, event duration, connection method and test workflow. Wireless, high-speed, multi-channel and production paths are configuration options, not universal capabilities, and compatibility is confirmed before quotation.
Each published value below belongs to the stated representative configuration.
A direct wired path for controlled engineering and laboratory setups.
100 Hz scan rate, USB 2.0 communication, 8-bit / 12-bit conversion and 142 × 65 × 32 mm reader size.
Matched matrices, sensor formats and analysis output arrangements.
Sensor compatibility, matrix capacity, scan rate, cable routing, recording duration and computer connection.
A wireless path for cable-restricted, mobile or short-term test layouts.
100 Hz scan rate, Wi-Fi 2.4 GHz, 8-bit / 12-bit conversion, 147 × 72 × 48 mm size, up to 8 hours operation and up to 100 m open-area range.
Wireless distance and operating time depend on the site environment, network conditions, battery condition and selected configuration.
Sensor formats and single- or multi-unit arrangements.
Radio environment, actual distance, operating duration, matrix, scan rate and test layout.
A wired path for short-duration pressure events requiring higher time resolution.
3,000–10,000 Hz scan-rate range, USB 2.0 communication, 8-bit / 12-bit conversion and 147 × 72 × 48 mm size.
Available acquisition rate depends on the connected sensor matrix, channel configuration, recording duration and test setup.
Compatible sensor matrices and event-focused recording arrangements.
Matrix compatibility, target scan rate, trigger, duration, synchronization, range and output.

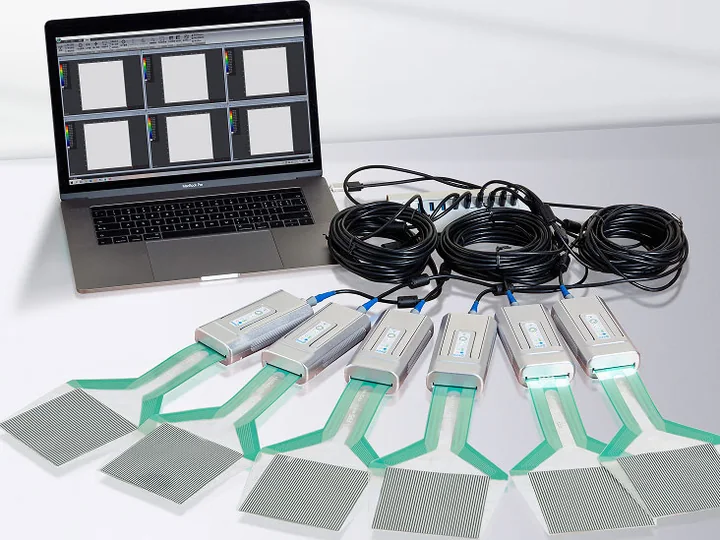

A coordinated path for multiple sensor areas or measurement positions within one test.
Multi-unit acquisition is available for selected compatible readers and sensor matrices.
Channel count, physical layout, wired or wireless arrangement and combined analysis.
Synchronization, total matrix load, scan rate, connection topology, recording duration and output alignment.
A controller path for pressure distribution checks in production fixtures and line-side processes.
One representative configuration supports a 48 × 48 matrix with 2,304 sensing points, 100 Hz acquisition, Profinet, 8-bit / 12-bit conversion and DC 12–24 V, 1 A power.
Sensor format, threshold workflow, data handling and reporting arrangement.
Control architecture, data exchange, cycle time, sensor compatibility, alarms, calibration and enclosure conditions.
Available specifications depend on the selected sensor, data acquisition hardware and software configuration. Final parameters will be confirmed for the application before quotation.

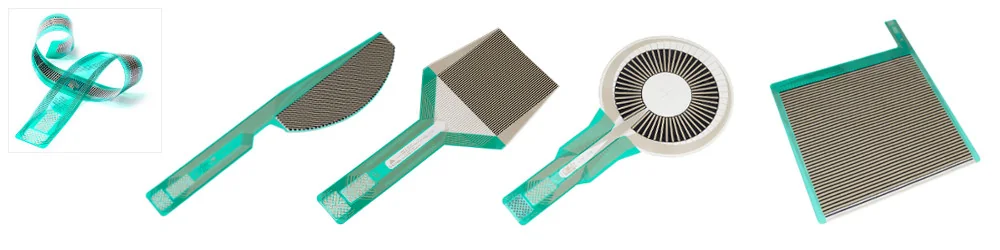

Geometry, area, range and sensor layout.
Static, cyclic, moving or transient behavior.
Matrix, scan rate, communication and duration.
Match sensor, reader and software before quotation.
The illustrations show the measurement workflow, not universal reader compatibility or a fixed hardware model.
Scan rate describes how often the configured matrix is acquired. A/D conversion describes the digital level resolution of the reader. Neither value alone defines system accuracy or suitability.
The event duration, rate of change, required time resolution, sensor matrix and recording objective determine the acquisition target.
No. Radio environment, distance, operating duration, scan rate and sensor compatibility must be reviewed for the actual setup.
A production integration controller is available as a configuration path, subject to interface, workflow and sensor compatibility confirmation.
Share the sensor area, event duration, target scan rate, communication and test layout.
