See the pressure. Solve the problem.
Pressure mapping solutions for battery, automotive & precision manufacturing — real-time 2D & 3D distribution, reusable film sensors and clear, data-driven reports.
An industrial pressure mapping system measures how contact pressure is distributed across an interface. A complete configuration combines a thin-film sensor array, compatible data acquisition hardware and pressure mapping and analysis software. Engineers use the resulting maps, values and recorded comparisons to investigate uneven loading, gaps and localized contact under defined test conditions.
Application-led coverage
Configuration guidance for battery, automotive, semiconductor and manufacturing contact-pressure applications.
Real-time 2D & 3D Mapping
Live pressure distribution with numeric values and exportable reports — not a one-time color stain.
Application-matched sensor options
Sensor formats and acquisition paths are reviewed for the interface, test conditions and required output before quotation.
Coordinated technical support
Technical support is coordinated around the measurement requirements, from configuration review through result interpretation.
Pressure mapping across precision industries
From battery cell stacking to gasket sealing, pressure mapping adds a spatial view where teams need to review contact distribution under defined conditions.
Battery & Energy Storage

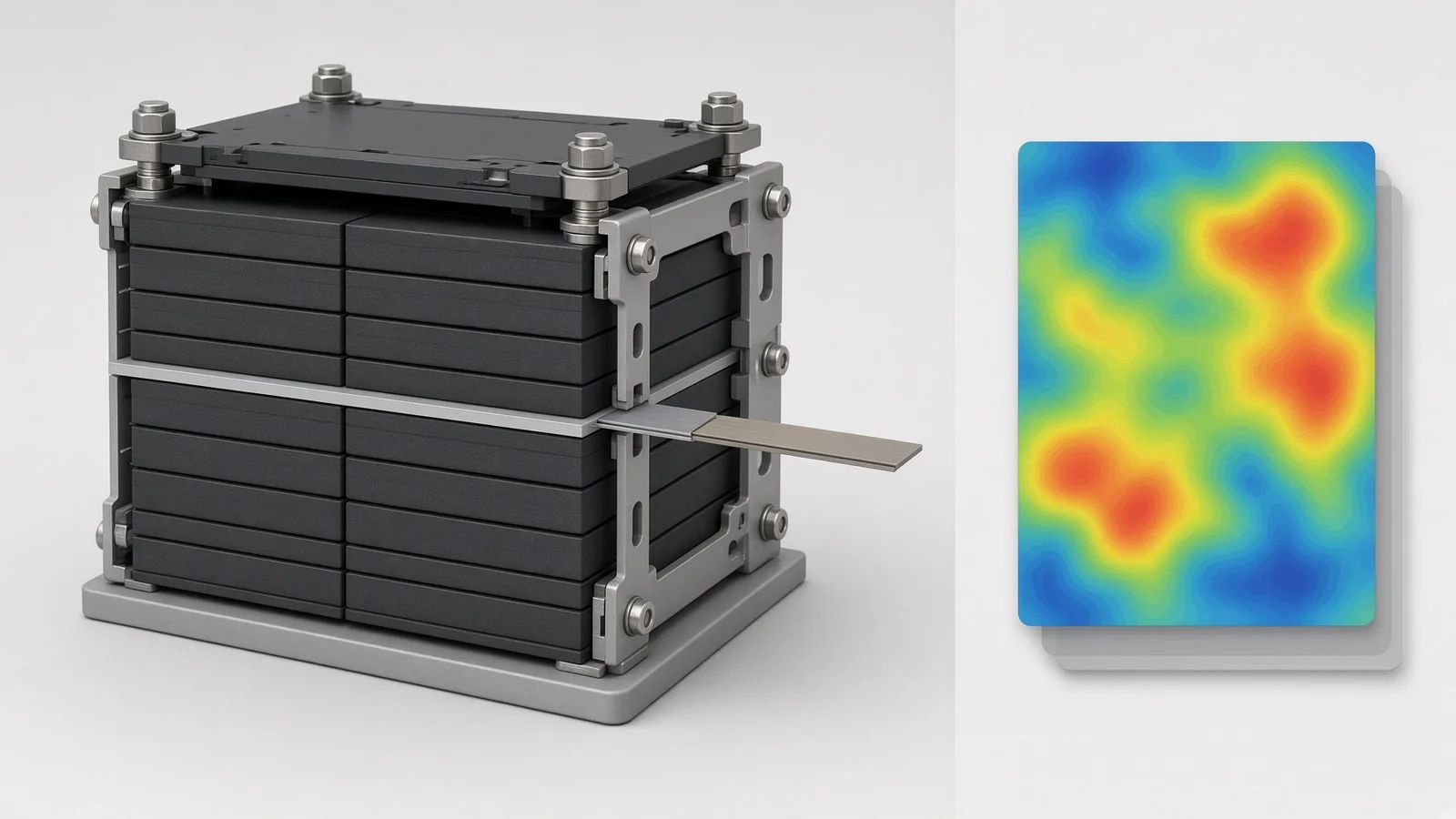

- Cell stacking pressure
- Pouch cell flatness
- Module & pack assembly
Automotive
- Windshield wiper pressure
- Door seal pressure

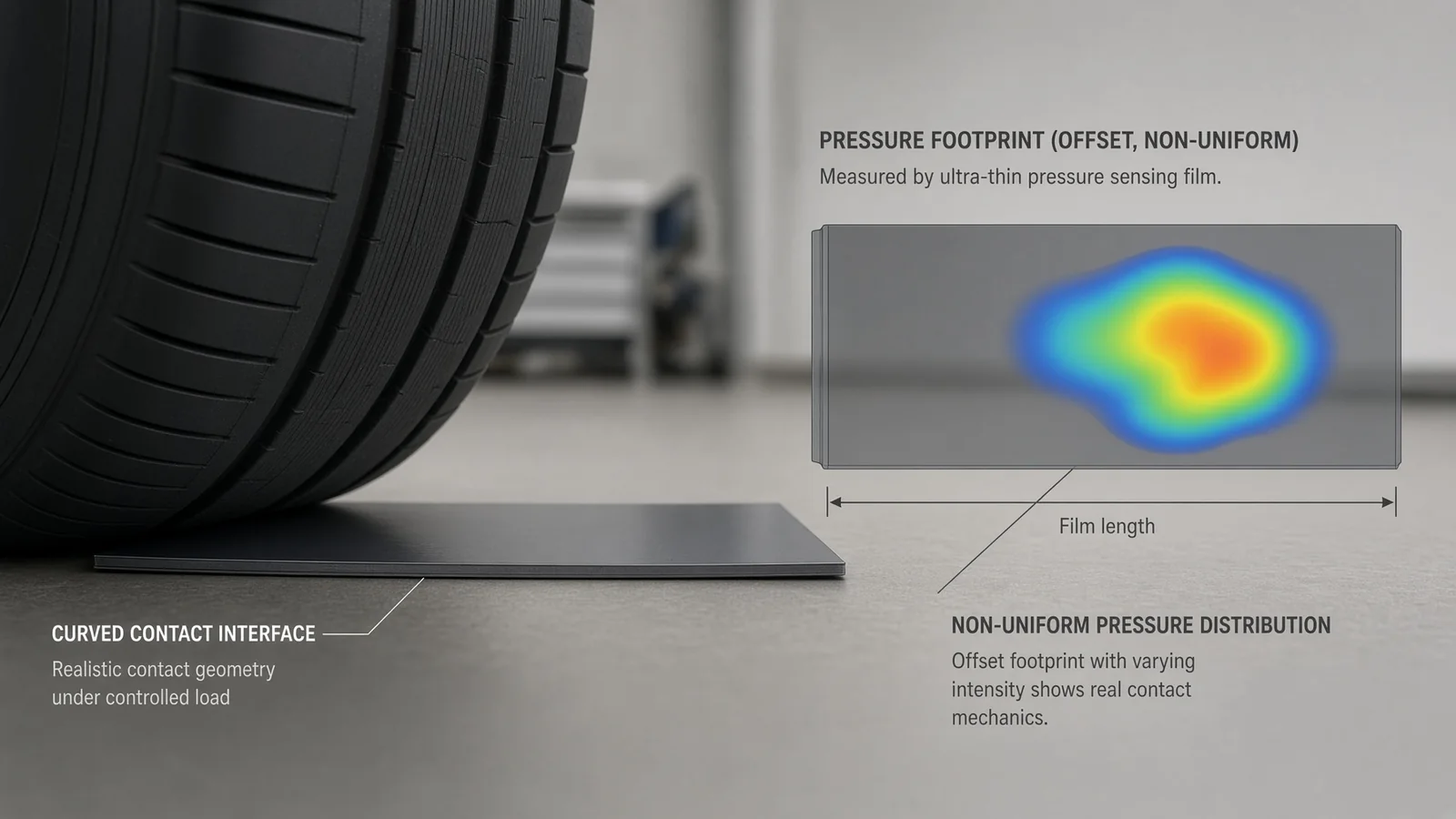

- Tire footprint & contact
Semiconductor & Electronics
- Wafer CMP & bonding
- PCB test fixtures
- Heat sink contact
Manufacturing & Assembly
- Gasket sealing pressure
- Bolted joints & clamping
- Press-fit & lamination
More Applications
- Robotics & grippers
- Aerospace & fuel cells
- Research & ergonomics
A complete pressure mapping system
Acquisition electronics, tactile film sensors and analysis software — supplied as an integrated solution or matched to your line.

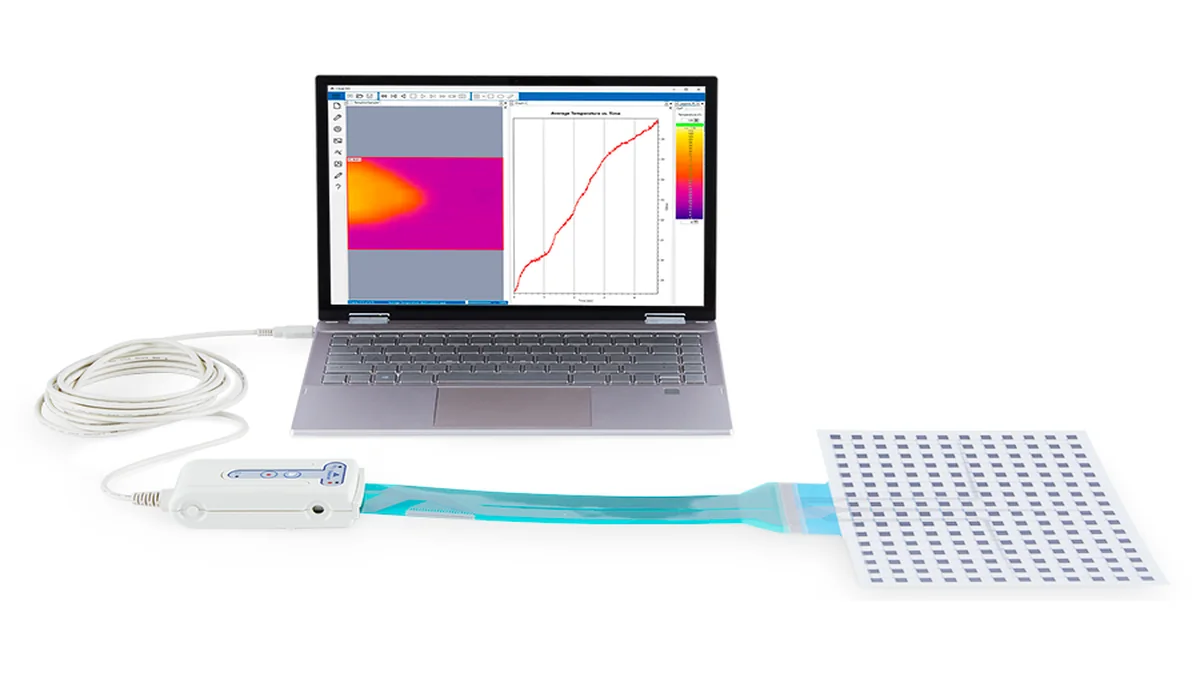

Pressure Mapping Systems
Acquisition handle & electronics plus software — a turnkey system that turns contact pressure into live 2D/3D maps.
Tactile Film Sensors
Thin, flexible sensing film in a wide spec matrix — sizes, sensing-point density, pressure ranges and thickness for many fits.
Software & Analysis
2D & 3D pressure maps, time curves, center-of-force tracking, reports and one-click export to Excel.
From contact surface to clear pressure data

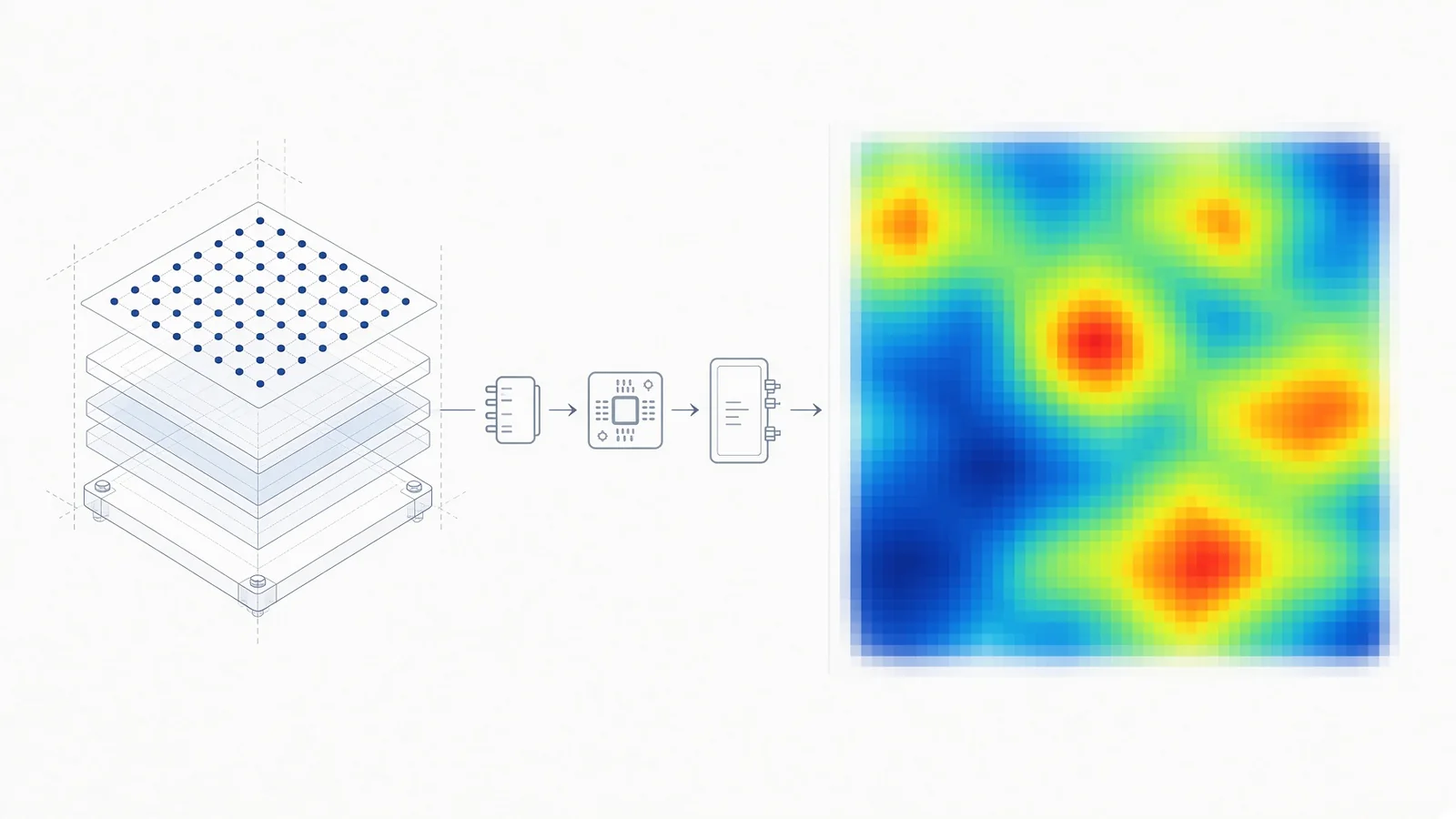

A tactile film sensor placed between two contacting surfaces captures how pressure is distributed across the contact area. The system reads thousands of sensing points and renders them as a live pressure map — so uneven load, gaps and hot spots become obvious at a glance.
- Reusable electronic sensor optionsSuitable configurations can support repeated measurements and real-time review rather than a single color record.
- Numeric, exportable resultsConfigured workflows can provide 2D/3D maps, values and reports for comparison, documentation and export.
- Review what is difficult to seeObserve edge loading, low-contact regions and uneven clamping that may warrant further engineering review.
Contact load becomes a live, spatial pressure map through the matched sensor, reader and software workflow.
A solution partner, not just a box supplier
We match the right pressure-measurement solution to your application — and stay with you from selection through results.
Application-led configuration review
We start from the measurement requirements and review a sensor, acquisition and software path. Compatibility and final specifications are confirmed for the application.
A complete measurement chain
Sensor options, compatible acquisition hardware and analysis software are reviewed as one configuration.
Application-focused support
Technical support is coordinated around sensor selection, test setup and interpretation requirements.
Responsive configuration and quotation support
Application requirements are reviewed before the proposed configuration and final specifications are confirmed for quotation.
Evidence you can build a decision on
Discuss the interface, setup and decision
Share the measurement challenge, physical interface and output your team needs. We can review the configuration path for the stated application.
Review the evaluation processSpecifications & sample reports
Sensor specifications, selection guides and sample measurement reports are available — request the documents relevant to your application.
See the pressure in your application
Describe the interface, loading conditions and output your team needs before selecting a configuration.
